Sundown Audio

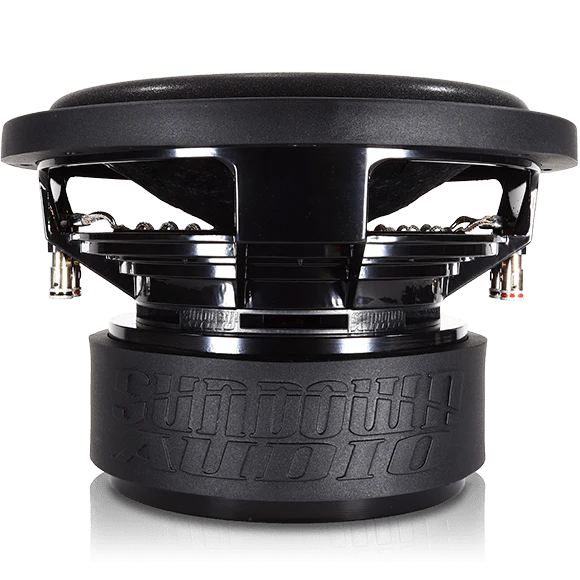

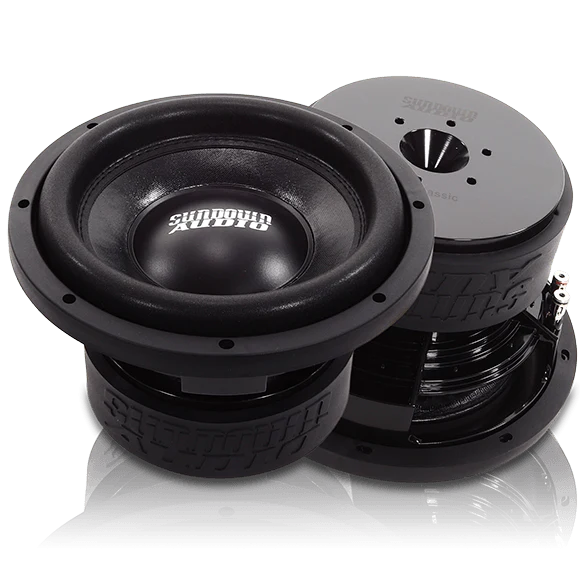

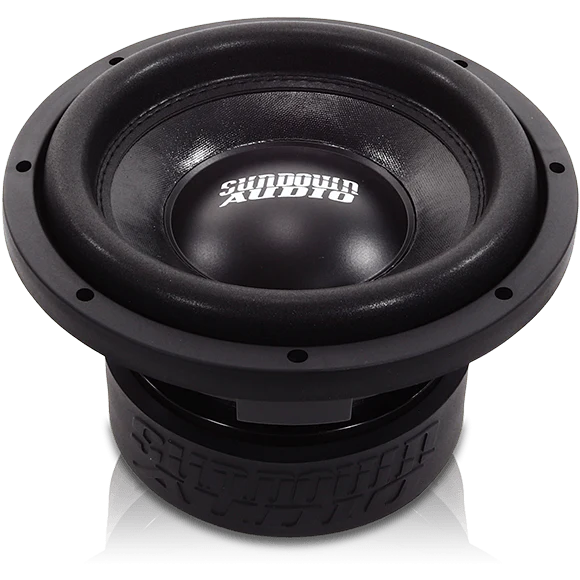

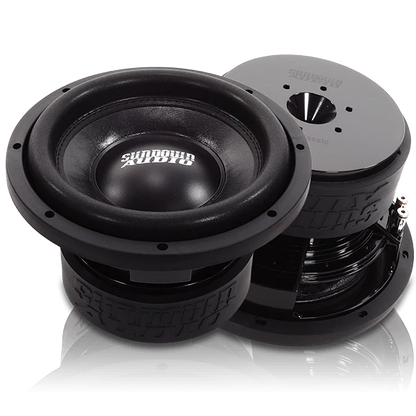

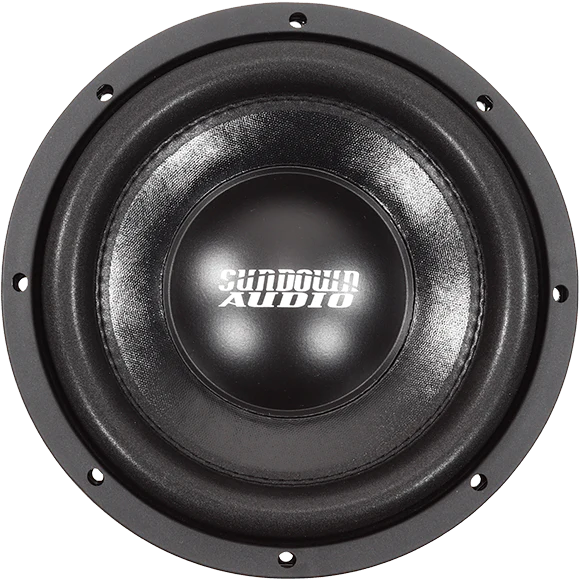

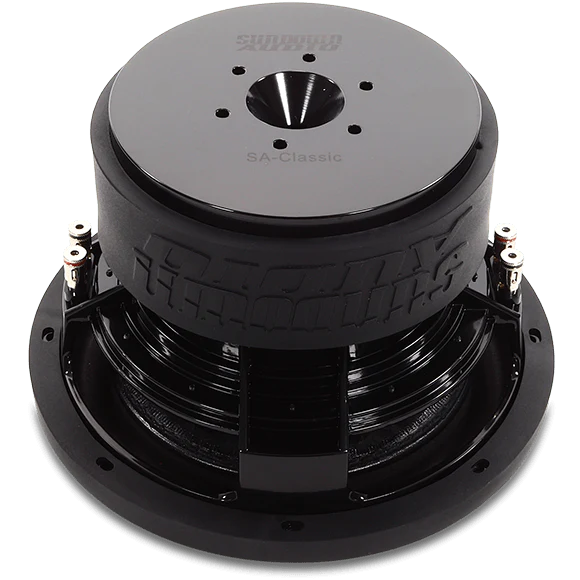

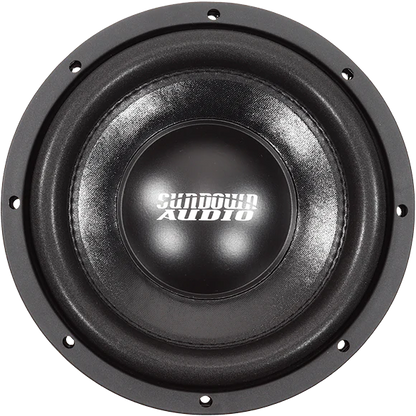

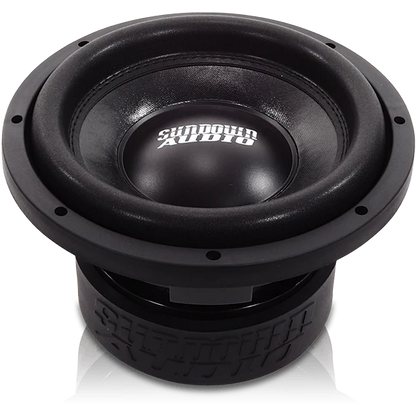

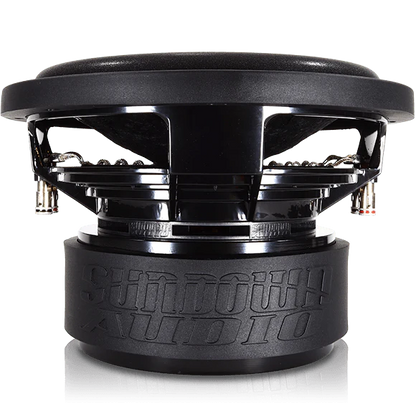

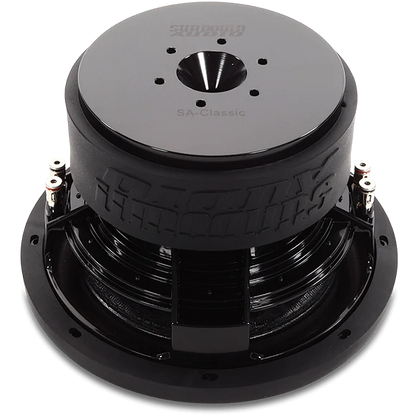

Sundown Audio SA Classic Series 10" (1,000-watts) Subwoofer
Sundown Audio SA Classic Series 10" (1,000-watts) Subwoofer
Regular price
$319.99 USD
Regular price
Sale price
$319.99 USD
Unit price
/
per
Couldn't load pickup availability
Sundown Audio SA Classic 10" Subwoofer
- 1000 Watt RMS/ 2000 Watt Peak
- Dual 2 or 4 ohm voice coils
- Optimized for small ported, sealed, & band-pass enclosures
- Large aluminum Faraday ring for smooth acoustic response
- High strength cast aluminum frame
- Low distortion motor construction
- High-temperature voice coil wire
- Spring-loaded terminals

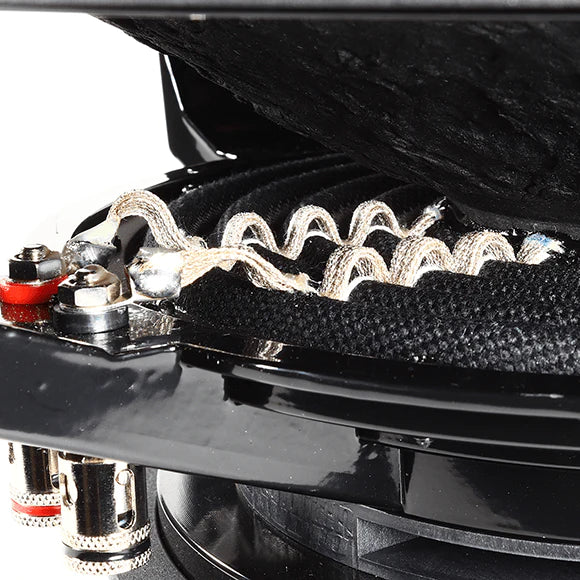

- Stitched-on “XL” tinsel lead wires
Ideal for under seat truck enclosures for extreme bass or in small to medium enclosure for car or SUV.
The SA Classic sub is the perfect combination of power handling and deep excursion. A cast aluminum frame houses a bulletproof custom 2.5-inch voice coil, robust double-layered Nomex spider, and SPL competition-grade paper cone, all built into a flexible design that works in any kind of enclosure.
Specifications
RE (Ohms) | 4.29 | 7.08 |
FS (Hz) | 35.4 | 36.6 |
VAS (L) | 10.13 | 10.66 |
Qes | 0.52 | 0.54 |
Qms | 5.41 | 5.30 |
Qts | 0.48 | 0.49 |
Le (mH) | 3.41 | 4.71 |
BL (NA) | 20.40 | 24.82 |
Mms (Grams) | 230 | 205 |
Cms (uM/N) | 87.8 | 92.4 |
Sens (dB @ 1w/1m) | 81.0 | 81.6 |
Xmax | 19mm | 19mm |
T/S SPECS | SA CLASSIC 10" D2 | SA CLASSIC 10" D4 |
---|
Enclosure Specifications
SA CLASSIC 10"
Sealed Enclosure | 0.5 cu ft |
Ported Enclosure | 1.0 cu ft |
Recommended Tuning | 35Hz |
Recommended Port Area | 15 sq in |
Displacement | 0.1 cu ft |
Depth | 6″ |
Outside Diameter | 10.5″ |
Cut-Out | 9.25″ |
Physical Dimensions | Download |
