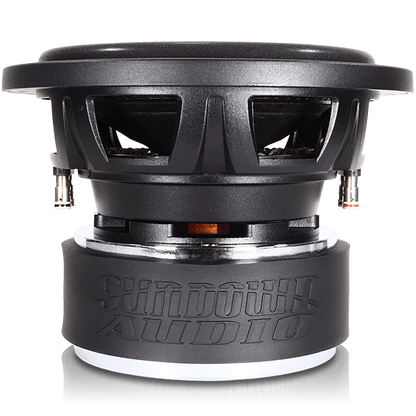

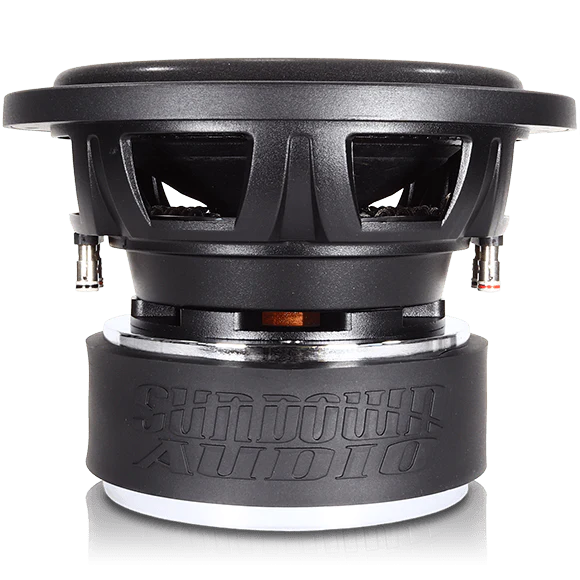

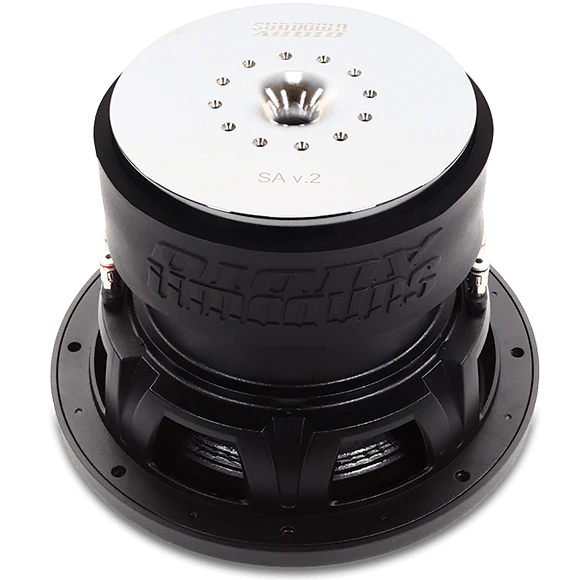

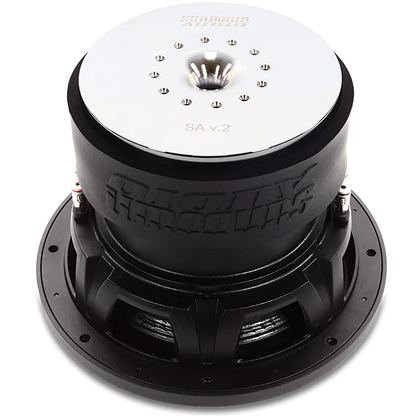

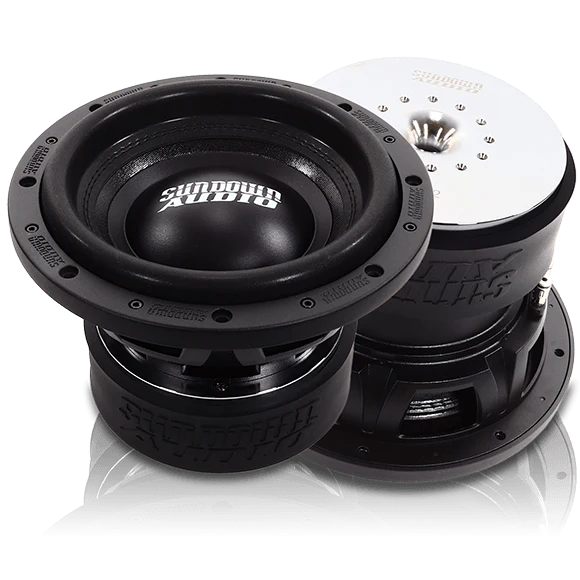

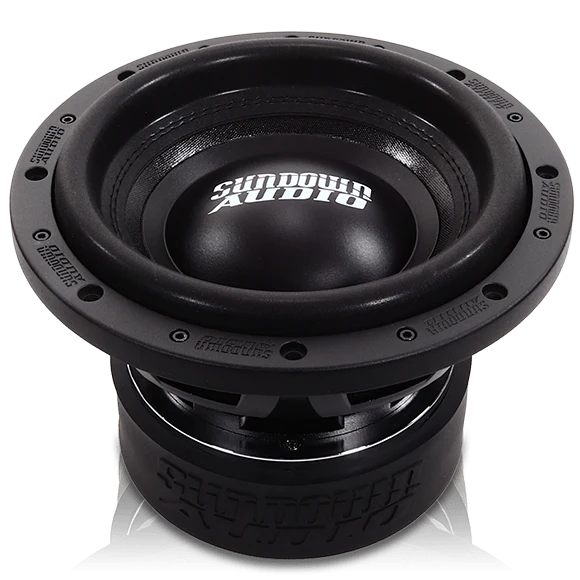

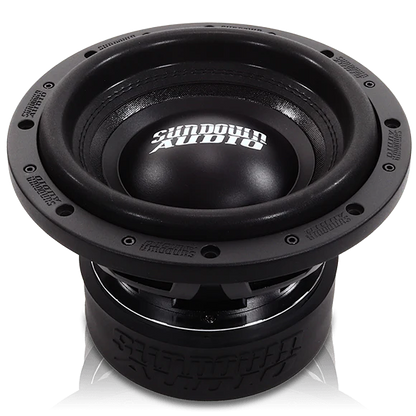

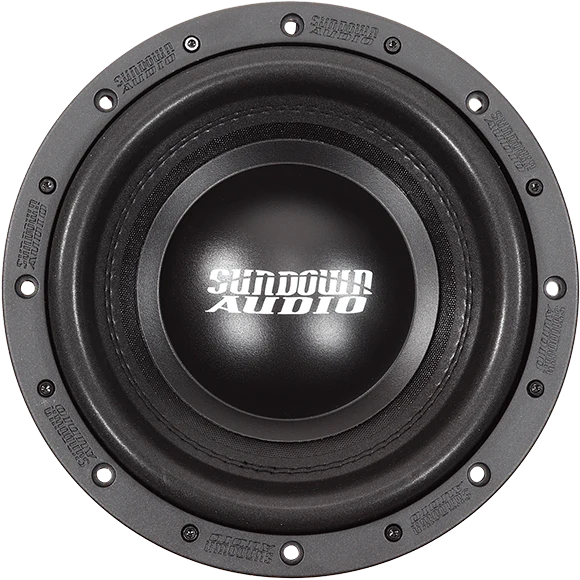

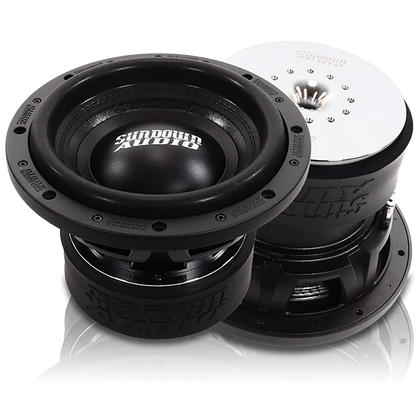

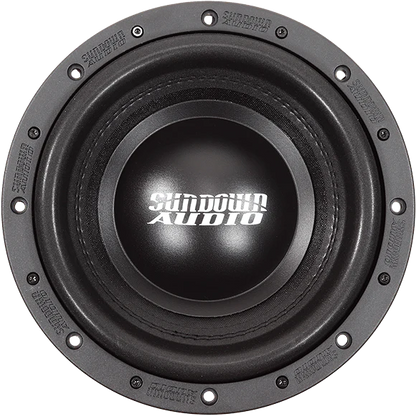

Sundown Audio SAV2 Series 10" (1250-watts) Subwoofer

Sundown Audio SAV2 Series 10" (1250-watts) Subwoofer

$389.99 USD
$389.99 USD
Sale Sold out
Style

Sundown Audio SAV2 10" Subwoofer

  • 1250 Watts RMS / 2500 Watts Peak
  • Dual 2 or 4 ohm voice coils
  • Vented magnetic gap
  • Aluminum 2.75” voice coil former for superior heat dissipation
  • Innovative high-velocity vented frame spacer ring
  • Large aluminum Faraday ring for smooth acoustic response
  • Patented high-strength cast aluminum frame
  • High-temperature voice coil wire

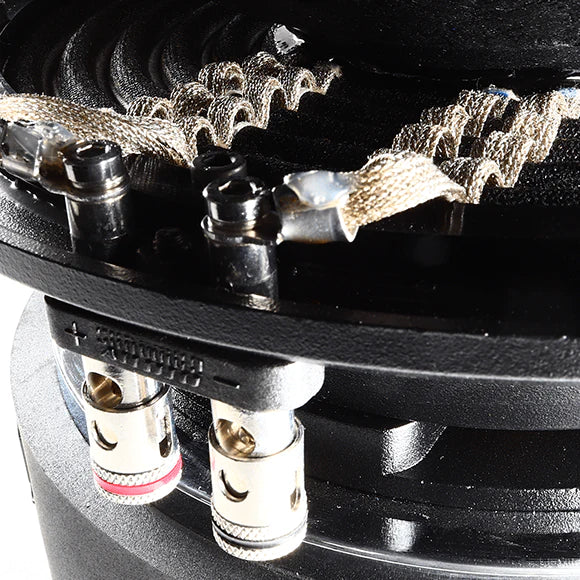

  • Spring-loaded terminals
  • Stitched-on double “XL” tinsel lead wires

Ideal for under seat truck enclosures for extreme bass or in small to medium enclosure for  car or SUV.

Specifications

RE (Ohms) 3.90 6.82
FS (Hz) 37.0810 36.1409
VAS (L) 10.3683 12.3547
Qes 0.3598 0.3744
Qms 3.7041 3.5051
Qts 0.3280 0.3383
Le (mH) 3.5178 4.4560
BL (NA) 28.3634 31.5270
Mms (Grams) 318.8226 281.6632
Cms (uM/N) 57.7815 68.8513
Sens (dB @ 1w/1m) 83.42 83.67
Xmax 19mm 19mm
T/S SPECS SAV2 10″ D2 SAV2 10″ D4

Enclosure Specifications

Sealed Enclosure 0.5 cu ft
Ported Enclosure 1.0 cu ft
Recommended Tuning 35Hz
Recommended Port Area 15 sq in
Displacement
Depth 6.92"
Outside Diameter 10.94″
Cut-Out 9.17″
Physical Dimensions Download
