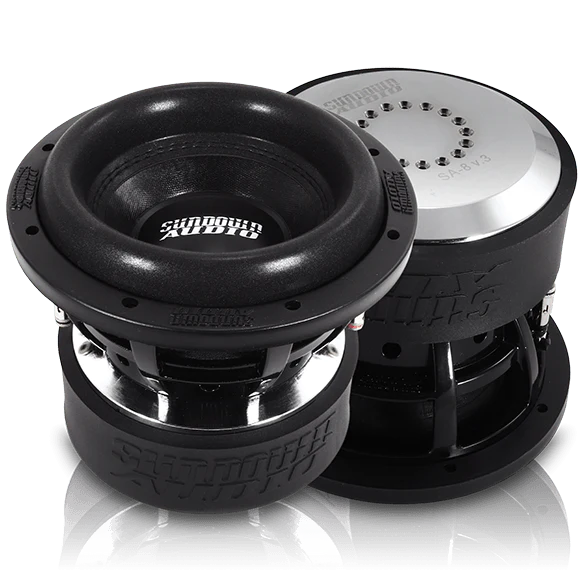

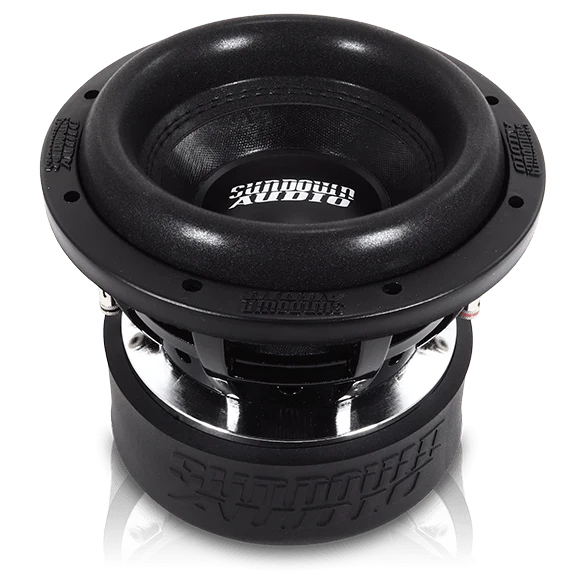

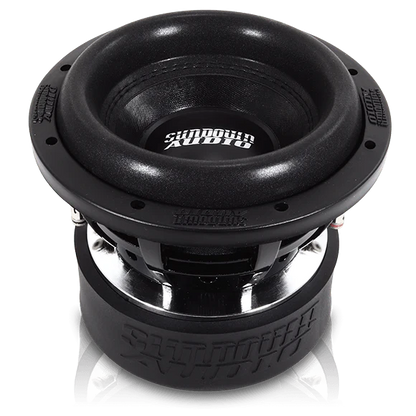

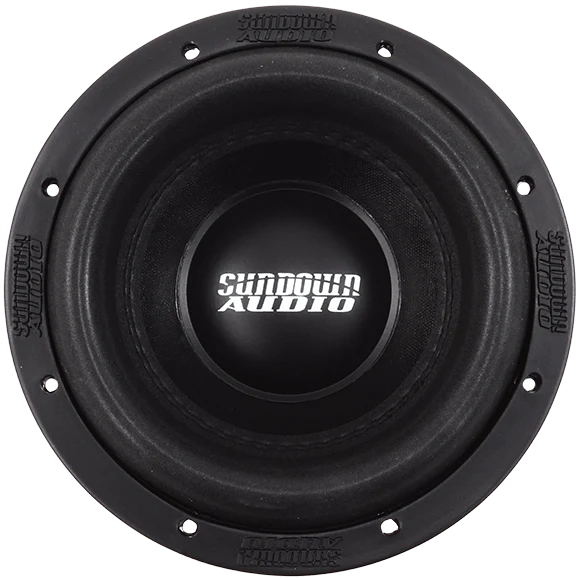

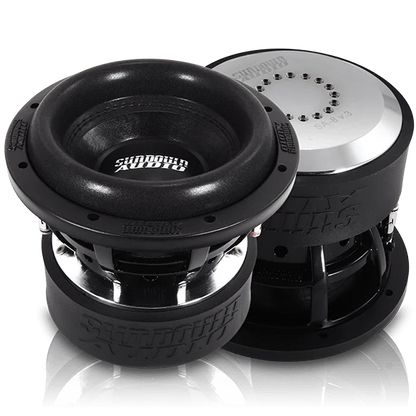

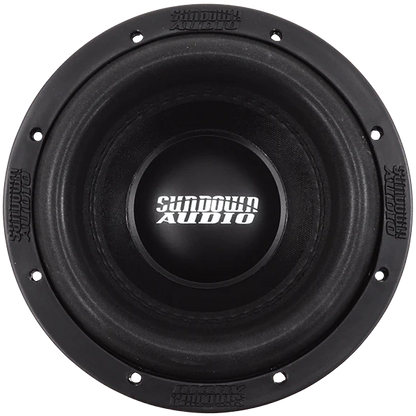

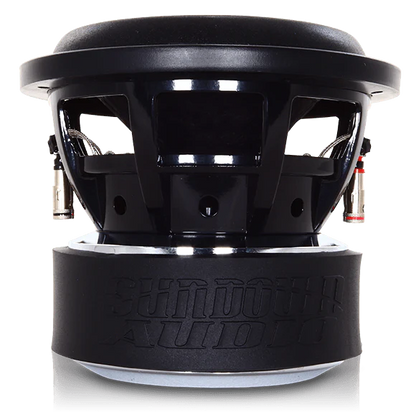

Sundown Audio SAV3 Series 8" (600-watts) Subwoofer
Sundown Audio SAV3 Series 8" (600-watts) Subwoofer
Regular price
$299.99 USD
Regular price
Sale price
$299.99 USD
Unit price
/
per
Couldn't load pickup availability
Sundown Audio SAV3 8" Subwoofer
- 600 Watts RMS/1200 Watts Peak
- Dual 2 or 4 ohm voice coils

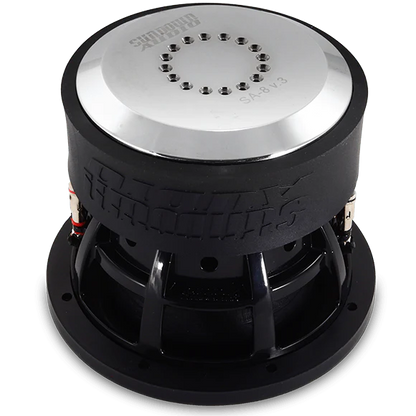

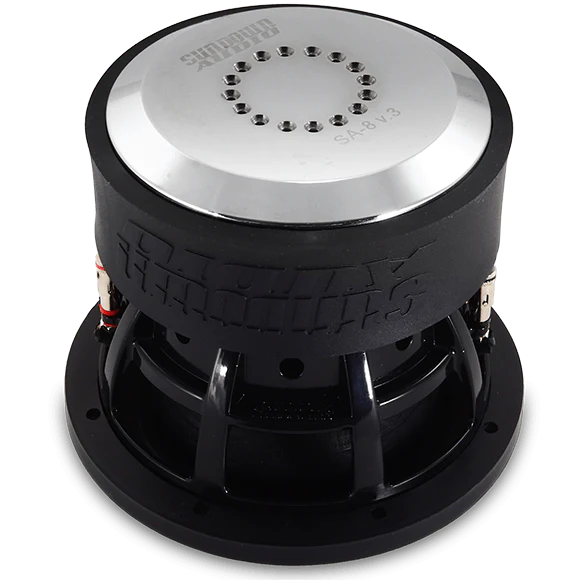

- Vented magnetic gap with 16 chamfered vents
- Large aluminum Faraday ring for smooth acoustic response
- Patented high-strength cast aluminum frame
- Low distortion motor construction
- High-temperature voice coil wire

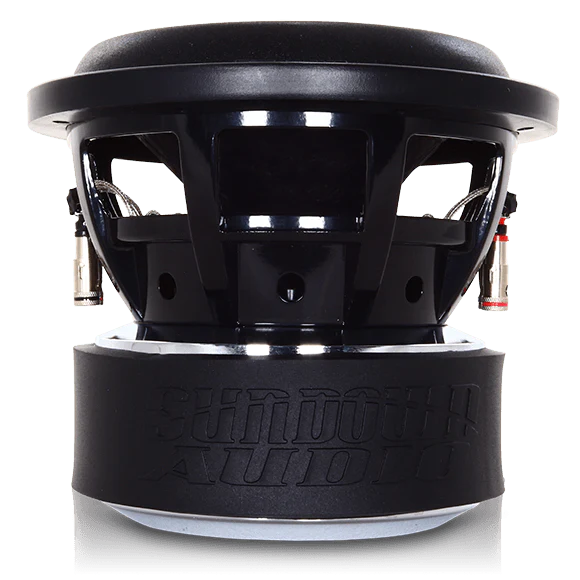

- Spring-loaded terminals
- Stitched-on “XL” tinsel lead wires
Ideal for under seat truck enclosures for extreme bass or in small to medium enclosure for car or SUV.
The pinnacle of low distortion ported box subwoofer technology, the SA 8-inch sub is completely custom tooled. It has a full 16mm of one-way linear excursion and mechanical capacity, exceeding double the linear limits, ensuring durability and low distortion. The v.3 update includes a new surround with linear geometry and improved thermal performance with the addition of 16 chamfered gap vents to keep high-velocity air flowing over the voice coil.
SPECIFICATIONS
RE (Ohms) | 3.36 | 6.0 |
FS (Hz) | 38.29 | 40.0 |
VAS (L) | 6.88 | 7.17 |
Qes | 0.324 | 0.392 |
Qms | 6.31 | 4.31 |
Qts | 0.309 | 0.36 |
Le (mH) | 2.08 | 3.32 |
BL (NA) | 18.94 | 22.06 |
Mms (Grams) | 144 | 126.6 |
Cms (uM/N) | 120 | 125 |
Sens (dB @ 1w/1m) | 82.79 | 82.71 |
Xmax | 16mm | 16mm |
T/S SPECS | SAV3 8″ D2 | SAV3 8″ D4 |
---|
ENCLOSURE SPECIFICATIONS
Sealed Enclosure | 0.3 cu ft |
Ported Enclosure | 0.65 cu ft |
Recommended Tuning | 35Hz |
Recommended Port Area | 9 sq in |
Displacement | 0.08 cu ft |
Depth | 6.625″ |
Outside Diameter | 8.629″ |
Cut-Out | 7.375″ |
Physical Dimensions | Download |
