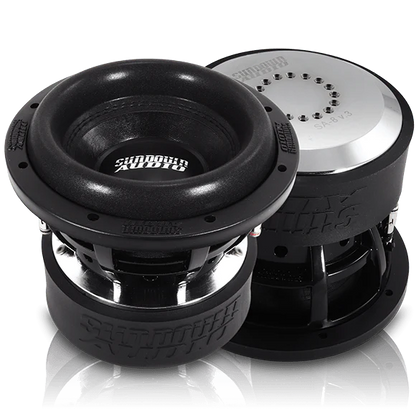

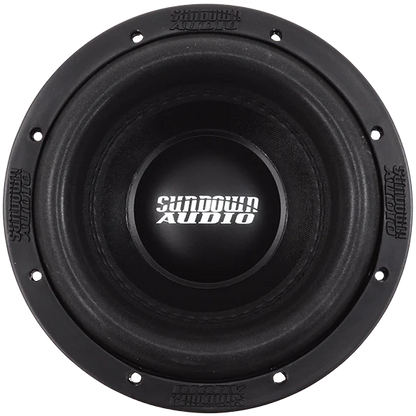

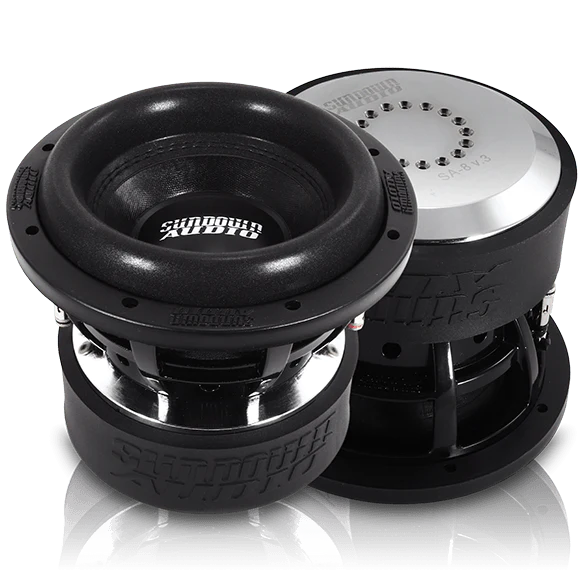

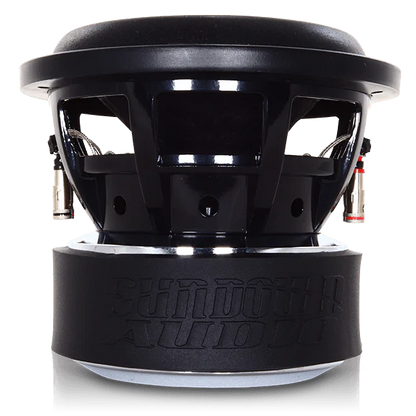

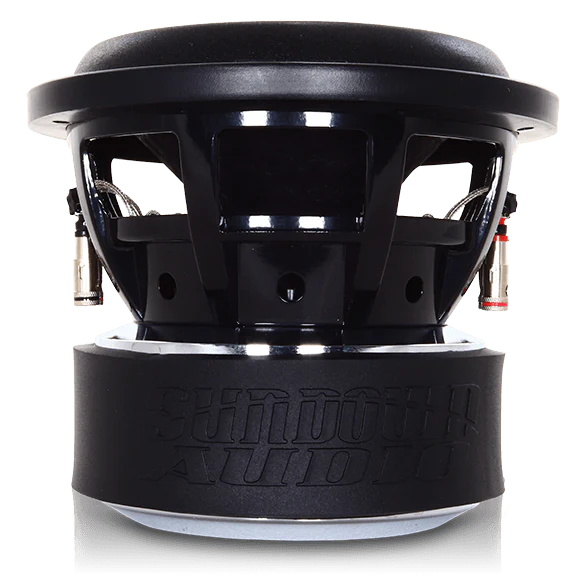

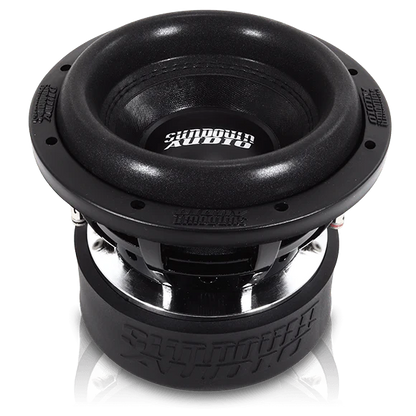

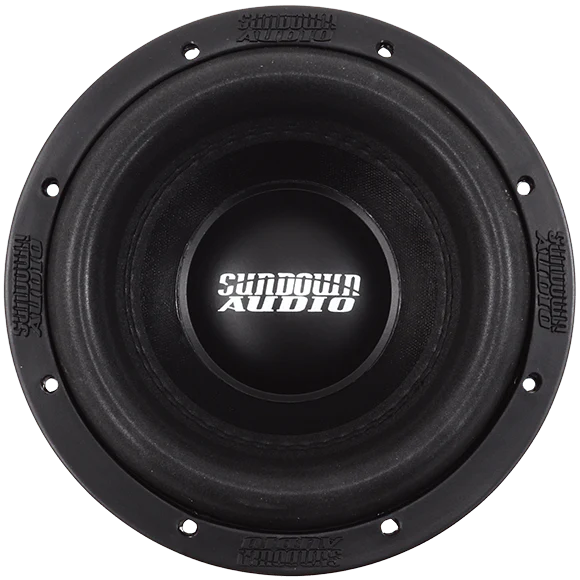

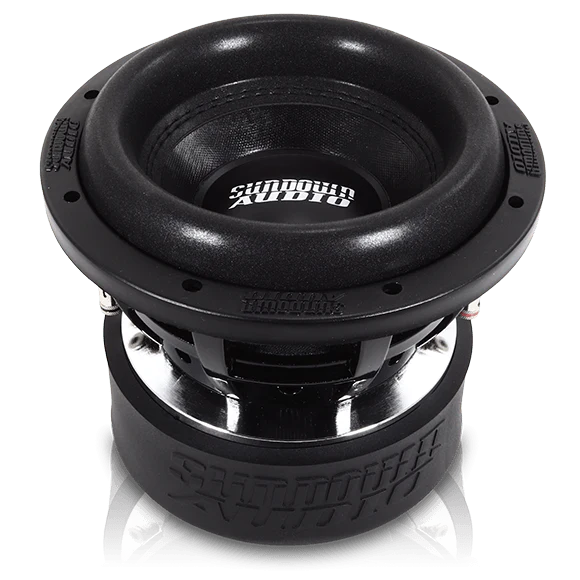

Sundown Audio X Series v.4 8" (1250-watts) Subwoofer
Sundown Audio X Series v.4 8" (1250-watts) Subwoofer
Couldn't load pickup availability
Sundown Audio XV4 8" Subwoofer
- 1250 Watts RMS / 2500 Watts Peak
- Dual 2 or 4 ohm voice coil
- Made for extremely deep bass

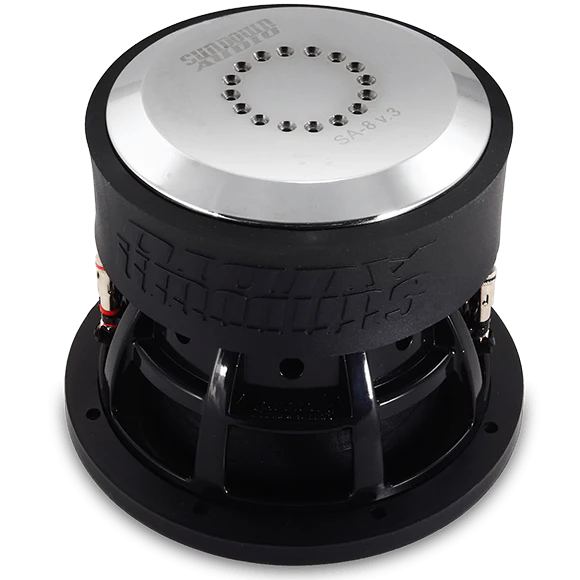

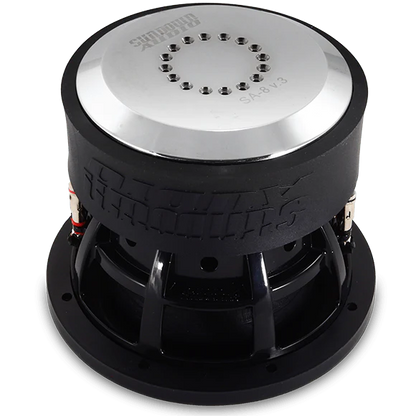

- Triple-stacked magnet
- 2.5” voice coil
- Hyper-extended pole
Ideal for under seat truck enclosures for extreme bass or in small to medium enclosure for car or SUV.
Designed with an extended pole piece and an incredible four inches of peak-to-peak excursion, the X v.4 is engineered for ultra-deep bass and high power handling. Engineered to set a new standard in the low-frequency/small-ported-box subwoofer category, the X Series can also work in up to a 50% larger enclosure if you desire even more low-end extension.
The X v.4 series differentiates itself with its incredibly linear suspension, ensuring the lowest level of bass extension in a small enclosure while maintaining extremely low levels of distortion. Notably, the v.2 series features a much larger motor structure (220mm vs. 190mm on the v.1 series), improved motor ventilation, and an all-new Mega-Roll v.2 surround, providing a more linear and rugged update to the world-famous Mega-Roll v.1 surround design.
Specifications
T/S SPECS | X V.4 8″ D2 | X V.4 8″ D4 |
---|---|---|
RE (Ohms) | 3.6 | 6.0 |
FS (Hz) | 41.299 | 44.150 |
VAS (L) | 4.126 | 3.562 |
Qes | 0.436 | 0.497 |
Qms | 1.941 | 2.300 |
Qts | 0.356 | 0.409 |
Le | ||
BL (NA) | 21.576 | 27.141 |
Mms (Grams) | 215.153 | 220.090 |
Cms | 68.389 | 59.044 |
Sens (dB @ 1w/1m) | 80.1 |
79.8 |
Xmax | 19mm |
19mm |
Enclosure Specifications
X v.4 8 | |
Sealed Enclosure | 0.3-.04cuft |
Ported Enclosure | 0.75-1.0 cu ft |
Recommended Tuning | 32hz |
Recommended Port Area | 12-16 sq in |
Displacement | 0.13 cu ft |

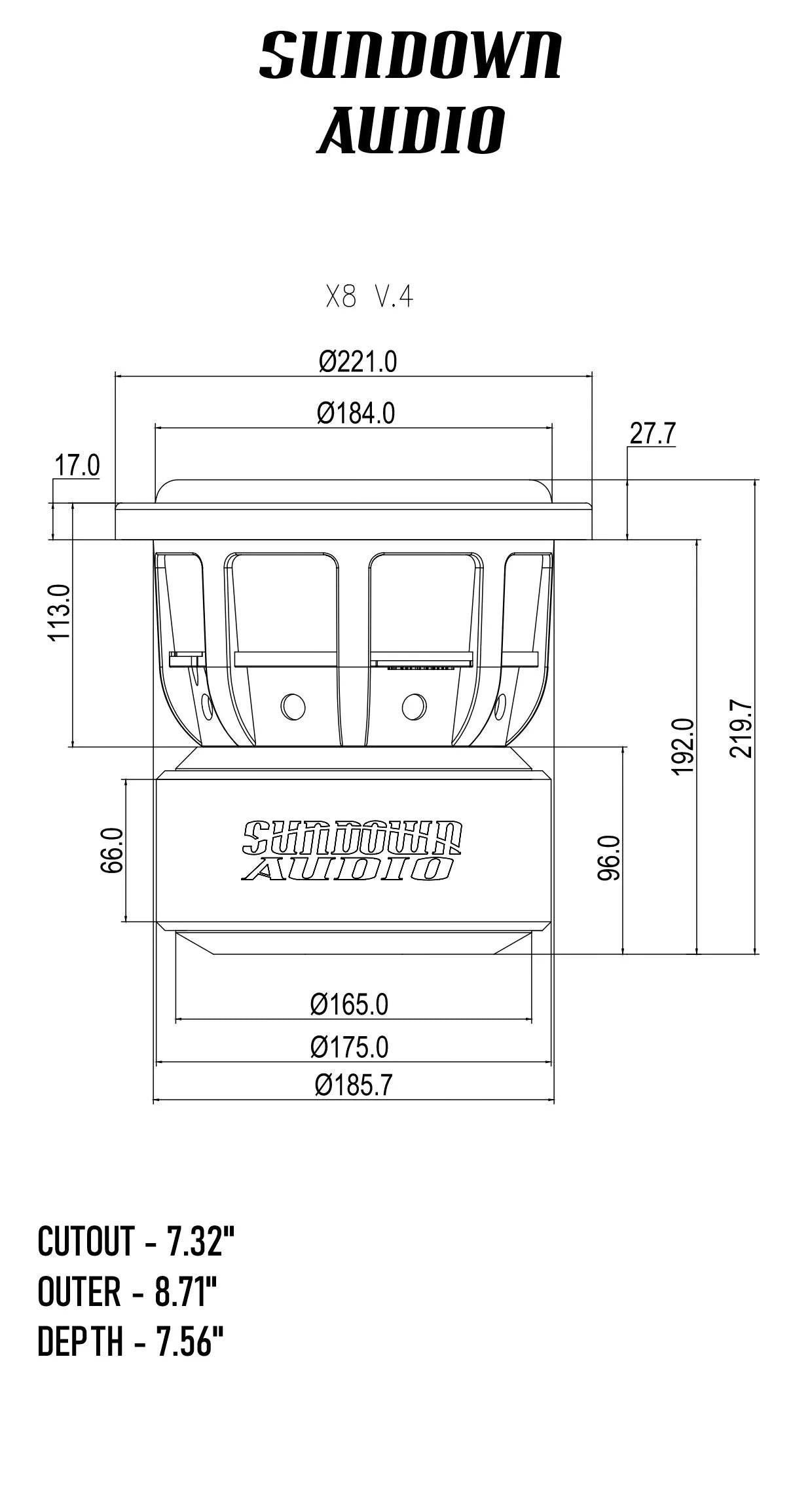

Depth | 7.56" |
Outside Diam. | 8.71" |
Cutout | 7.32" |
